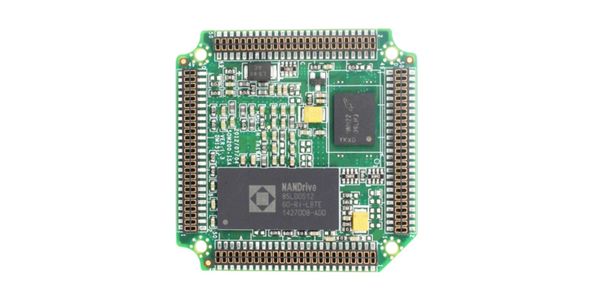

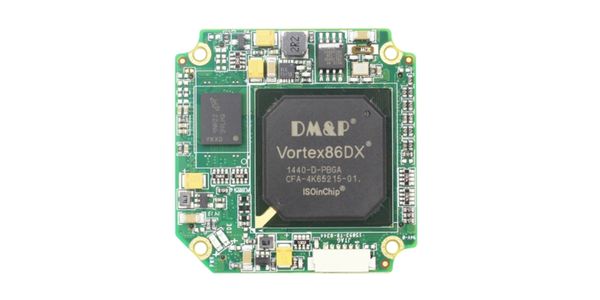

SOM200SX-XI

The System on Module is a core module with the processor, memory, and I/O that would contain the following benefits in the respect of system design.

SOM200SX-XI is suitable for a broad range of data-acquisition, Industrial automation, Process control, Automotive controller, AVL, Intelligent Vehicle management device, Medical device, Human-machine interface, Robotics, and machinery control.

SOM200SX-XI measured at only 52mm (L)*52mm (W)*10.5mm (H), is designed particularly as the kernel for the diverse expandable applications.

Through 8 rows of 25pin connector, SOM200SX-XI is able to provide multiple functions, such as RS-232, ISA, IDE, LAN, USB, and GPIO.

To assist users in easily adapt SOM200SX-XI Module into their applications, ICOP offers a complete development board and referential circuit diagram for SOM200SX-XI Module in order to reduce users’ time.
