Advantech

PCM-3680-BE

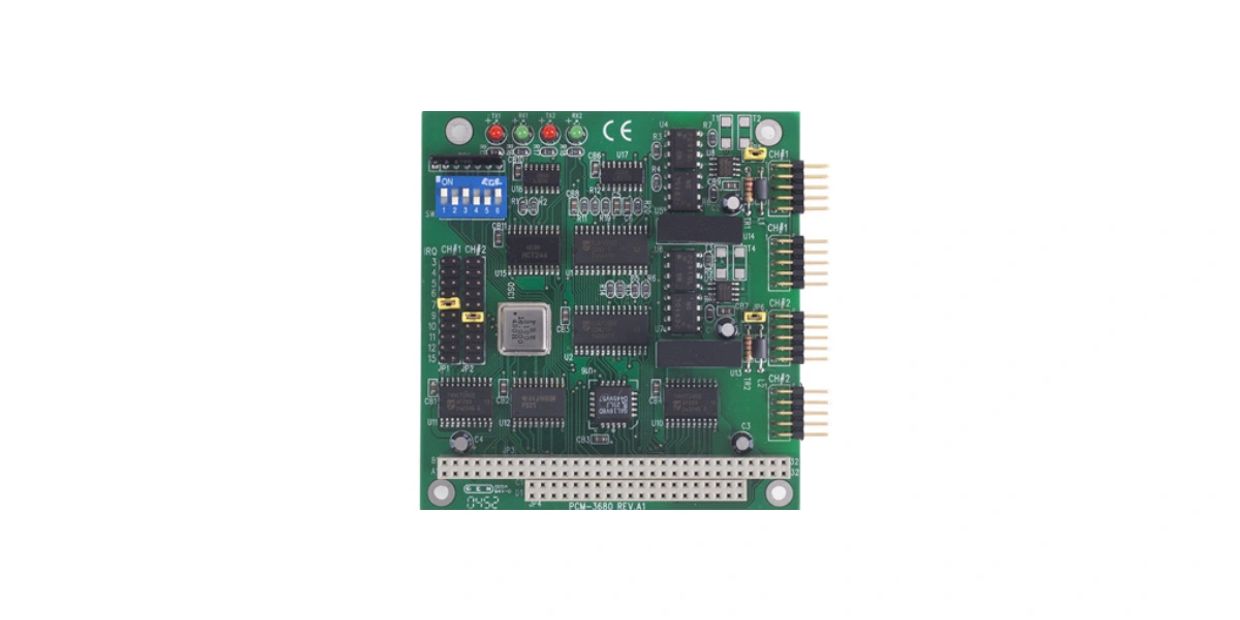

Advantech PCM-3680-BE

Overview

2-port CAN-bus PC/104 Module with Isolation Protection

The PCM-3680 is a special purpose communication module which offers connectivity of the Controller Area Network to your PC.


With the built-in CAN controller, the PCM-3680 provides bus arbitration and error detection with automatic transmission repeat function.



  • Operates two separate CAN networks at the same time
  • High speed transmission up to 500 kbps
  • Optical isolation protection of 1,000 VDC ensures system reliability
  • 16 MHz CAN controller frequency
  • Wide IRQ selection for each port: IRQ 3, 4, 5, 6, 7, 9, 10, 11, 12, 15
  • LEDs indicate Transmit/Receive status on each port
  • Direct memory mapping enables very fast access to the CAN controllers
  • Windows DLL library and examples included
  • Supports Windows 2000/XP/Vista and Linux

Technical Resources

PCM-3680-BE_DataSheet (pdf)Download
